Webhooks

Overview

Webhooks support two invocation scenarios: alert-triggered callbacks and API request completed callbacks. Callback URLs must use HTTPS (https://).

You can configure a Webhook to be called when an alert is triggered, or you can receive API request success notifications as a standard request body.

UI Preview

Below are UI screenshots for the Webhooks feature:

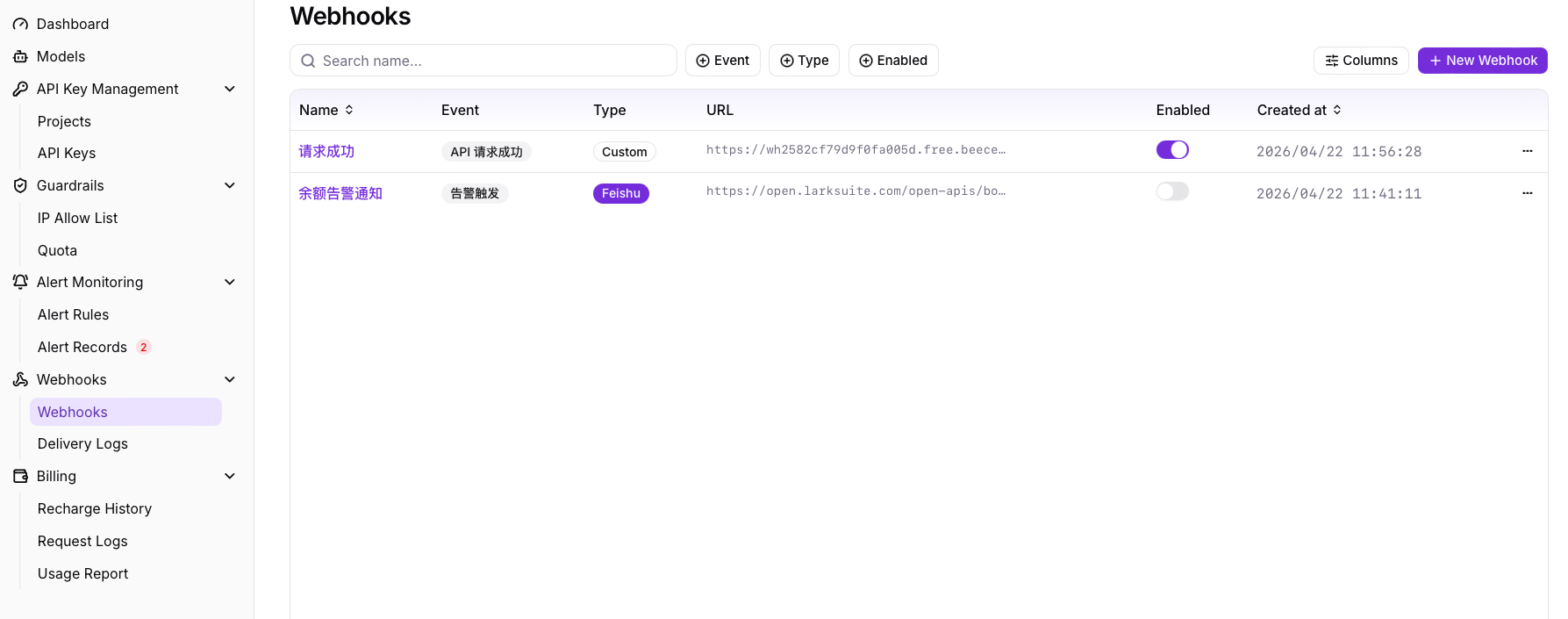

Figure: Webhooks main UI

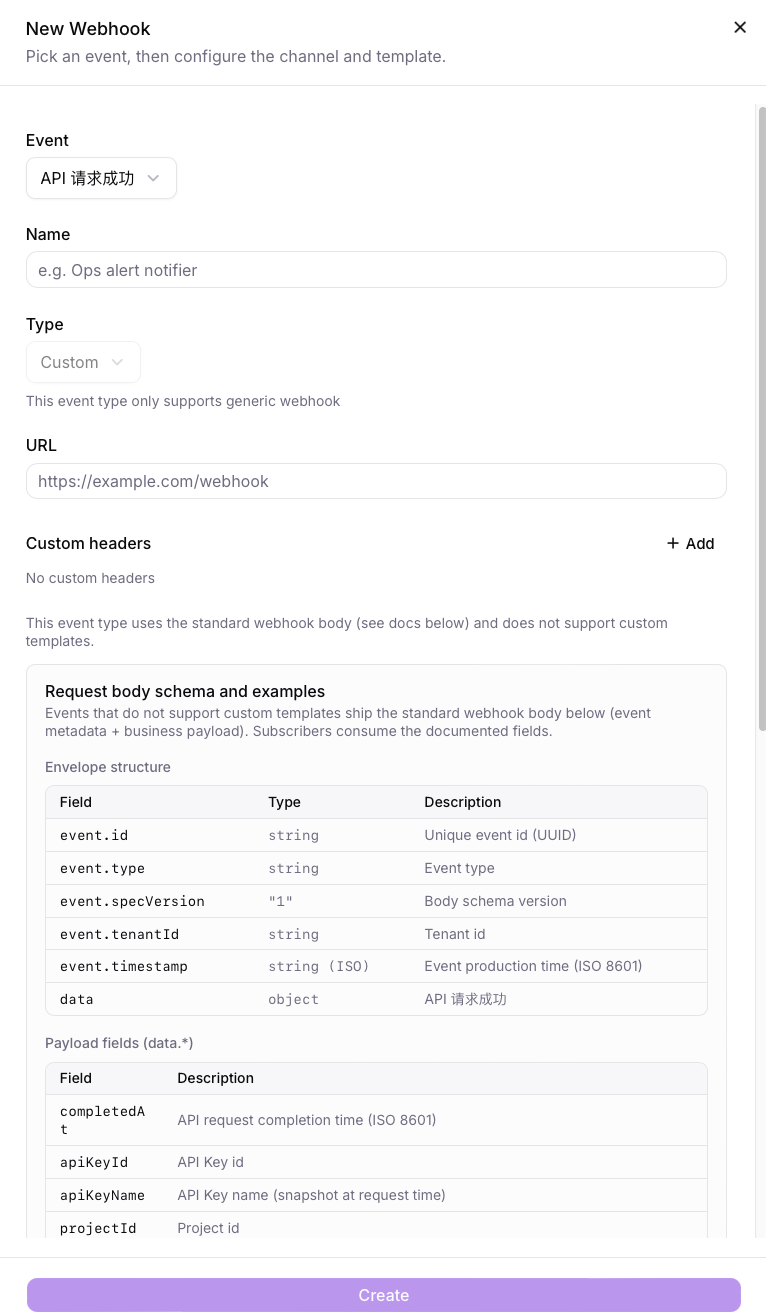

Figure: Create Webhook UI

Alert Trigger Callback

The alert callback supports template variables. Common variables:

• ${triggerSource} — trigger source (e.g. project name)
• ${triggerValue} — current metric value (raw)
• ${triggerValueDisplay} — current metric value (formatted, with unit, e.g. $90.00 / 90%)
• ${ruleName} — alert rule name
• ${metricName} — monitored metric name
• ${triggerAt} — trigger time (ISO 8601)
• ${ruleThreshold} — alert threshold (raw)
• ${ruleThresholdDisplay} — alert threshold (formatted with unit, e.g. $100.00 / 80%)
• ${defaultMessage} — system default alert message
• ${viewLink} — link to the detail page

Reference payload:

{
  "event": {
    "type": "alert.triggered",
    "specVersion": "1"
  },
  "data": {
    "metricName": "${metricName}",
    "ruleName": "${ruleName}",
    "triggerSource": "${triggerSource}",
    "triggerValue": "${triggerValue}",
    "triggerValueDisplay": "${triggerValueDisplay}",
    "ruleThreshold": "${ruleThreshold}",
    "ruleThresholdDisplay": "${ruleThresholdDisplay}",
    "triggerAt": "${triggerAt}",
    "defaultMessage": "${defaultMessage}",
    "viewLink": "${viewLink}"
  }
}

The alert callback supports variable replacement and will be delivered as JSON. Custom message templates are not supported beyond the provided variables.

API Request Completed Callback

This callback is triggered when an API request completes. The callback uses a standard Webhook envelope structure in the request body and does not support custom message templates.

Envelope fields

Field	Type	Description
event.id	string	Unique event ID (UUID)
event.type	string	Event type
event.specVersion	"1"	Payload spec version
event.tenantId	string	Tenant ID
event.timestamp	string (ISO)	Event timestamp (ISO 8601)
data	object	API request completed payload

Payload (data.*) fields

Field	Description
completedAt	API request completion time (ISO 8601)
apiKeyId	API Key ID
apiKeyName	API Key name (snapshot at request time)
projectId	Project ID
projectName	Project name (snapshot at request time)
path	HTTP request path
model	Model ID used
isBatch	Whether the call was a batch call (batch pricing applied to cost)
usage	Usage details (tokens, images, videoSeconds, etc.)
cost	Final cost (after batch discount), unit: CNY
latencyMs	Request latency in milliseconds

Reference example:

{
  "event": {
    "id": "9e8f7b2a-4c3d-4f5a-9e1b-7a6b5c4d3e2f",
    "type": "api_request.completed",
    "specVersion": "1",
    "tenantId": "org_abc",
    "timestamp": "2026-04-17T10:23:11.442Z"
  },
  "data": {
    "completedAt": "2026-04-17T10:23:11.089Z",
    "apiKeyId": 42,
    "apiKeyName": "prod-anthropic",
    "projectId": 7,
    "projectName": "Customer Service Bot",
    "path": "/v1/messages",
    "model": "claude-opus-4-5",
    "isBatch": false,
    "usage": {
      "inputTokens": 1234,
      "outputTokens": 567,
      "totalTokens": 1801
    },
    "cost": 0.04218,
    "latencyMs": 2310
  }
}

Delivery Records

The system records each Webhook delivery attempt (including retries). Delivery logs include delivery time, target URL, HTTP status code, response summary, retry count, and final status.

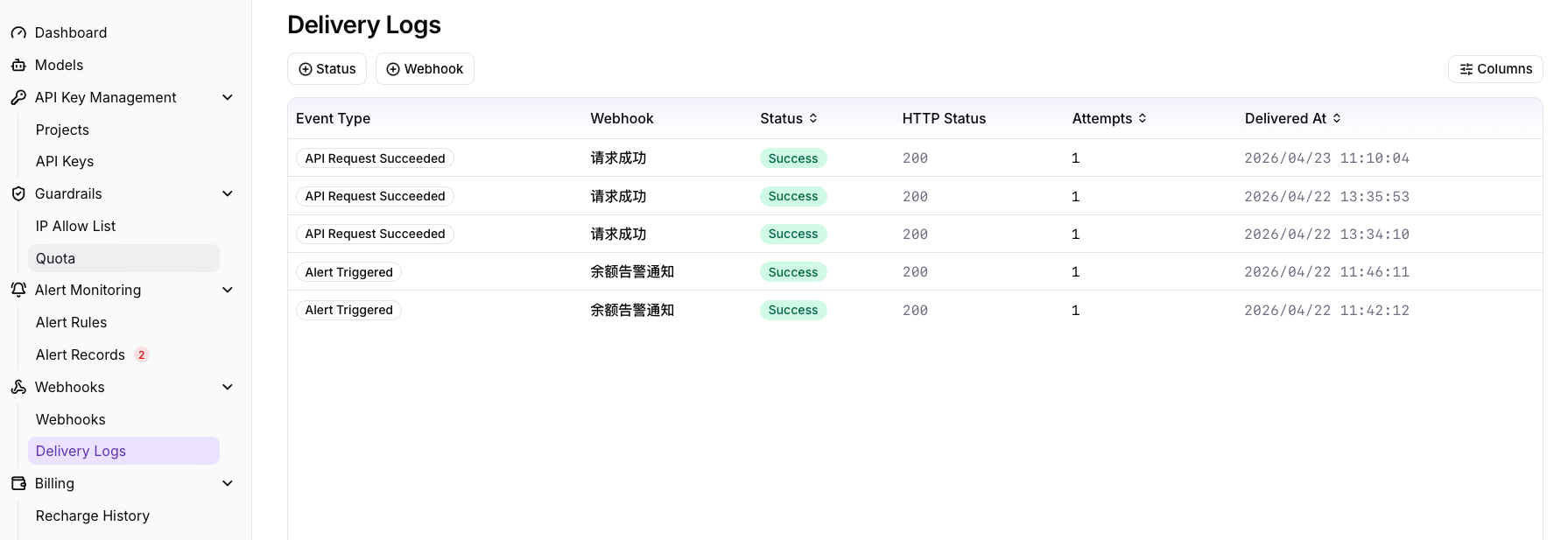

Figure: Webhook delivery records (example)
